Sugar and food industry

Precoat filtration of molasses

Precoat filtration of molasses

Molasses is the residual sugar syrup that can no longer crystallize, remaining after several stages of crystallization and centrifugation in the production of sugar from sugar beets or sugar cane.

Molasses still contains approximately 50–60% residual sugar, as well as other substances that prevent further crystallization.

To optimize yield, the molasses is separated into its sugar and non-sugar components using chromatography columns. This requires efficient removal of the undissolved solids.

This process is carried out year-round, regardless of the seasonality of the raw materials (sugar beets or sugar cane).

Blocking of chromatography.

Chromatography columns are high-quality pieces of equipment that are highly susceptible to clogging by solids. To prevent this, pre-coating filters that use filter aids are often used.

However, traditional systems such as plate filters or conventional cartridge pre-coating filters are often prone to leaks and/or solid-particle breakthrough, which in turn cause the chromatography columns to become blocked.

Reliable design for a reliable barrier.

The use of a patented candle filter design tailored to the sugar industry can increase process reliability and prevent breakthroughs.

At the same time, using such a system enables dry discharge, which increases yield and eliminates the need for additional slurry-processing equipment.

The solution: LENZING CakeFil

Reliable and loss-free pre-settling filtration of molasses.

  • loss-freedry solids discharge
  • reliableno breakthroughs
  • Filter finenessup to submicron range
Process sugar molasses Englisch

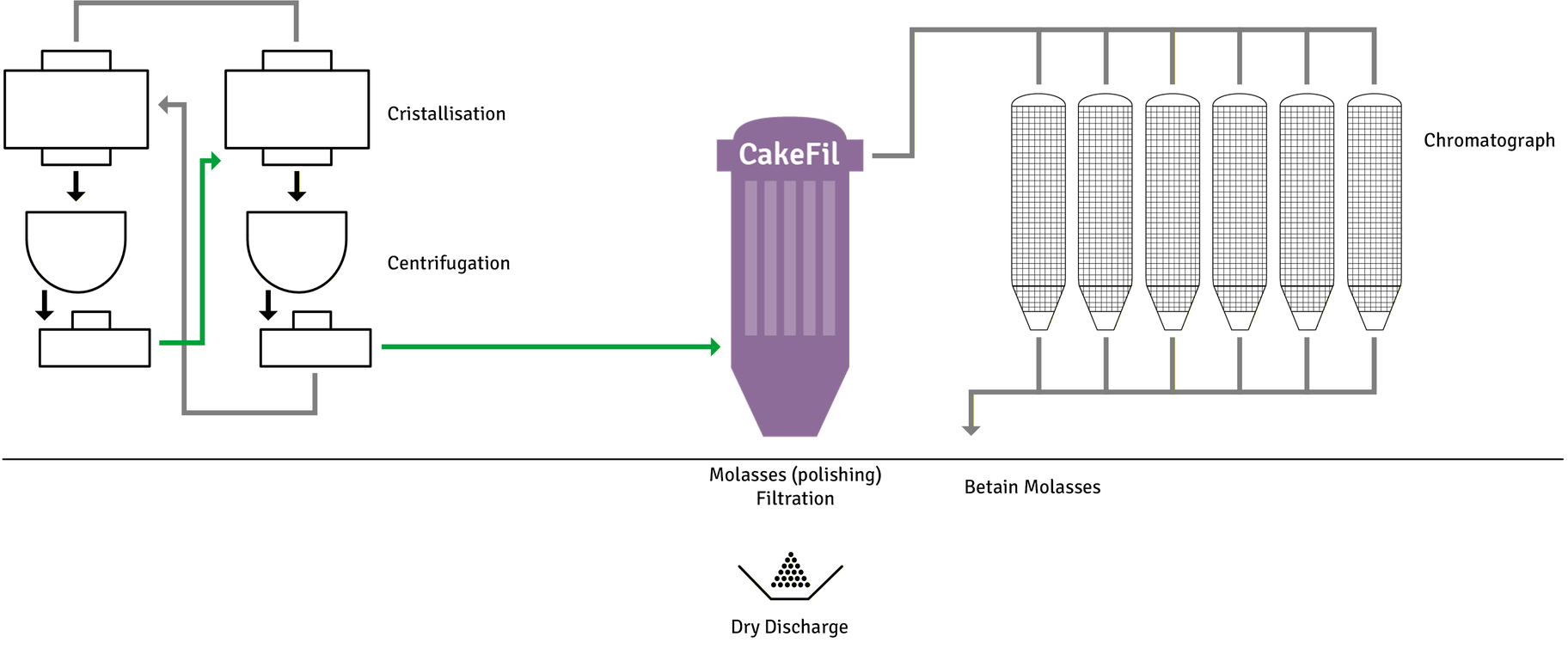

Simplified process diagram of the installation of a LENZING CakeFil

Precoat filtration of molasses

Advantages of using the LENZING CakeFil system

fully automatic operation

Uninterrupted operation for months on end.

Reliability

Finest filtration and the absence of breakthroughs provide ideal protection for the downstream chromatography steps.

Loss-free

Cake washing and drying result in loss-free and optimized operation..

LENZING CakeFil

The LENZING CakeFil system is a process candle filter for cake building filtration with slurry or dry solids discharge. Its patented system enables highly efficient backwashing, thereby extending the service life of the filter fabric.

Filtration down to submicron range
Dry or slurry discharge
Efficient cake discharge
Unbeatable cloth service life
